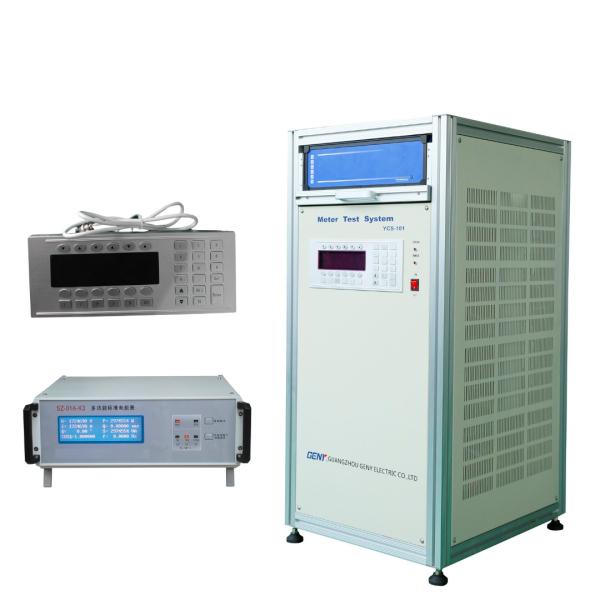

    Ycs-101-250 Stationary Power Cabinet 0.672CBM Direct Connected

    Ask Lasest Price
    Certification : ISO, CE
    Supply Ability : 100/Year
    Payment Terms : L/C, T/T, D/P
    Brand Name : GENY
    Model Number : YCS-101
    • Product Details
    • Company Profile

    Ycs-101-250 Stationary Power Cabinet 0.672CBM Direct Connected

    0.672CBM Direct Connected Ycs-101-250 Stationary Power Cabinet with and Installation

    Product Parameters

    Application Conditions and Requirements
    EnvironmentPower RequirementSafety
    Operation TemperatureHumidityAltitudeVoltage SupplyIP ClassConformity
    -10ºC--+40ºC35%--85%<2500m3x220/380V±10%(or customized)IP30CE conform
    50/60Hz±2Hz
    TypeYCS-101-250YCS-101-600YCS-101-1200YCS-101-2500
    Voltage
    Test voltage output(Phase-Neutral)24V-300 V or customized
    Power of the voltage outputMax.100VAMax.250VAMax.500VAMax.1000VA
    ResolutionBetter than 0.01% of full scale value of range
    Setting accuracyBetter than 0.05% at the final range value
    StabilityBetter than 0.005%/h (integration time 150 s)
    Load regulation from 0-max.loadBetter than 0.01%
    Distortion factorBetter than 0.3% for linear resistance load
    Harmonics2nd-41st free programmable
    Current
    Test current output1mA-120A/200A
    Power of the current outputMax.250VAMax.500VAMax.1000VAMax.2000VA
    ResolutionBetter than 0.01% of full scale value of range
    Setting accuracyBetter than 0.05% at the final range value
    StabilityBetter than 0.005%/h(integration time 150 s)
    Load regulation from 0-max.loadBetter than 0.01%
    Distortion factorBetter than 0.3% for linear resistance load
    Harmonics2nd-41st free programmable
    Phase angle
    Range0-360°
    Resolution0.01°
    Setting accuracy0.1°
    Frequency
    Range45Hz-65Hz
    Resolution0.01Hz
    Error display
    Type of error displayRed LED
    Resolution of the error displays8 digits

    Product Description

    YCS-101 Single Phase Power Source

    • Output separate voltage and current signal, suit for single phase energy meter.
    • High accuracy and high stability output.
    • With RS232 interface for automatic operation.
    • With keyboard for manual operation(optional).
    • 2nd-41st harmonic,output amplitude and degree can be programmed.
    • Aluminum alloy material,light and strong, prevent corrosion.
    • With the protect function of overload, short voltage circuit and open current circuit.
    • Simple control software,easy for operation.
    • The power source is accredited to conforms to EU health and safety standards with CE certificates

    Applications:

    1. Nation-level utility companies

    2. Governmental bureaus of metrology

    3. Big energy meter manufacturers

    Primary Competitive Advantages:

    1. High quality product

    2. High power output (max. voltage power: 1000VA, current power: 1500VA)

    3. Extremely high power stability

    4. Distortion factor less than 0.3% for linear resistance load
