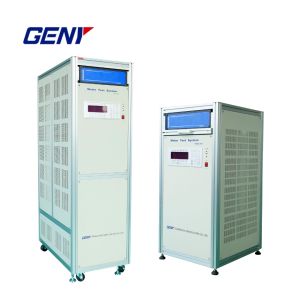

    Accuracy 0.02 Energy Stationary Power Source Max 21 Times Harmonic Free

    Ask Lasest Price
    Brand Name : GENY
    Model Number : YCS-103
    Certification : ISO, CE
    Price : negotiate rates
    Payment Terms : T/T,L/C,D/P,T/T
    Supply Ability : 5 sets / 1 months
    Delivery Time : 6~8weeks
    • Product Details
    • Company Profile

    Accuracy 0.02 Energy Stationary Power Source Max 21 Times Harmonic Free

    Max 21 Times Harmonic Free Programmable Three Phase Energy Stationary Power Systems with Accuracy Class 0.02


    Technical Specifications:


    Max 21 Times Harmonic Free High Precision Three Phase Energy Stationary Power Source


    ParameterYCS-103-250YCS-103-600YCS-103-1200YCS-103-2500
    Voltage



    Test Voltage Output (Phase-Neutral)3×(24V – 288V) or customized3×(24V – 288V) or customized3×(24V – 288V) or customized3×(24V – 288V) or customized
    Power of the Voltage Output3×100VA3×250VA3×500VA3×1000VA
    ResolutionBetter than 0.01% of full scale value of rangeBetter than 0.01% of full scale value of rangeBetter than 0.01% of full scale value of rangeBetter than 0.01% of full scale value of range
    Setting AccuracyBetter than 0.05% at the final range valueBetter than 0.05% at the final range valueBetter than 0.05% at the final range valueBetter than 0.05% at the final range value
    StabilityBetter than 0.005%/h (integration time 150 s)Better than 0.005%/h (integration time 150 s)Better than 0.005%/h (integration time 150 s)Better than 0.005%/h (integration time 150 s)
    Load Regulation from 0-max. Load< 0.01%< 0.01%< 0.01%< 0.01%
    Distortion Factor< 0.3% for linear resistance load< 0.3% for linear resistance load< 0.3% for linear resistance load< 0.3% for linear resistance load
    Harmonics (2nd – 21st)Free programmableFree programmableFree programmableFree programmable
    Current



    Test Current Output3×(1mA – 100A)3×(1mA – 100A)3×(1mA – 100A)3×(1mA – 100A)
    Power of the Current Output3×150VA3×350VA3×750VA3×1500VA
    ResolutionBetter than 0.01% of full scale value of rangeBetter than 0.01% of full scale value of rangeBetter than 0.01% of full scale value of rangeBetter than 0.01% of full scale value of range
    Setting AccuracyBetter than 0.05% at the final range valueBetter than 0.05% at the final range valueBetter than 0.05% at the final range valueBetter than 0.05% at the final range value
    StabilityBetter than 0.005%/h (integration time 150 s)Better than 0.005%/h (integration time 150 s)Better than 0.005%/h (integration time 150 s)Better than 0.005%/h (integration time 150 s)
    Load Regulation from 0-max. Load< 0.01%< 0.01%< 0.01%< 0.01%
    Distortion Factor< 0.3% for linear resistance load< 0.3% for linear resistance load< 0.3% for linear resistance load< 0.3% for linear resistance load
    Harmonics (2nd – 21st)Free programmableFree programmableFree programmableFree programmable
    Phase Angle



    Range0 -- 360°0 -- 360°0 -- 360°0 -- 360°
    Resolution0.01°0.01°0.01°0.01°
    Setting Accuracy0.1°0.1°0.1°0.1°
    Frequency



    Range45Hz – 65Hz45Hz – 65Hz45Hz – 65Hz45Hz – 65Hz
    Resolution0.01Hz0.01Hz0.01Hz0.01Hz
    Voltage Supply



    Voltage Supply3×220/380V±10% or customized3×220/380V±10% or customized3×220/380V±10% or customized3×220/380V±10% or customized
    Frequency50/60Hz±2Hz50/60Hz±2Hz50/60Hz±2Hz50/60Hz±2Hz
    Operating Conditions



    Ambient Temperature-10°C -- +40°C-10°C -- +40°C-10°C -- +40°C-10°C -- +40°C
    Relative Humidity35-- 85%35% -- 85%35% -- 85%35% -- 85%


    Description:

    • Constructed from aluminum alloy materials, this device boasts a combination of lightweight properties and robustness, effectively preventing corrosion while ensuring high accuracy and stability in output.
    • Equipped with an optional keyboard, facilitating manual operation as needed.
    • Capable of outputting from the 2nd to the 21st harmonic, with programmable amplitudes and degrees.
    • Easily operable via PC control software suite, streamlining operation processes.
    • Features an RS232 interface, enabling automatic operation and integration with external systems.
    • Incorporates protective measures against overload, short voltage circuits, and open current circuits, ensuring safety and reliability during operation.

    Applications:

    • State metrology offices
    • National utilities
    • Major energy meter manufacturers

    Primary Competitive Advantages:

    • High power output (max voltage power: 1000VA, current power: 1500VA)
    • High quality product
    • Extremely high power stability
    • Distortion factor less than 0.3% for linear resistive load

    Accuracy 0.02 Energy Stationary Power Source Max 21 Times Harmonic Free

    Accuracy 0.02 Energy Stationary Power Source Max 21 Times Harmonic Free

    Accuracy 0.02 Energy Stationary Power Source Max 21 Times Harmonic Free

    Accuracy 0.02 Energy Stationary Power Source Max 21 Times Harmonic Free

    *If you want to know more please check our official website:http://www.genymetertestequipment.com/
