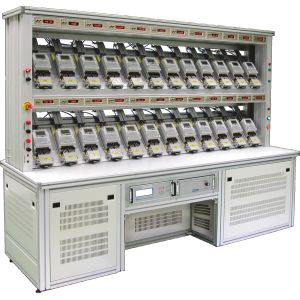

    Full Auto Single Phase Energy Meter Testing Accuracy 0.05% Meter Test Bench

    Ask Lasest Price
    Brand Name : GENY
    Model Number : YC-1891D
    Certification : ISO, CE
    Price : negotiate rates
    Payment Terms : T/T, L/C, D/P, T/T
    Supply Ability : 5 sets / 1 months
    Delivery Time : 6~8weeks
    • Product Details
    • Company Profile

    Full Auto Single Phase Energy Meter Testing Accuracy 0.05% Meter Test Bench

    Full-Auto Operation Single Phase Electricity Meter Test Equipment with Accuracy 0.1%, 0.05, 0.02% Yc1891D


    Features & Functions

    • Meters under testing: 1P2W, 1P3W
    • Testing mode active power, reactive power With MSVT, can test single phase meters with closed links between the current and voltage measuring circuits(I-P links) With current output switch, can calibrate 2-element meters (optional)
    • Installing Rs232 Ethernet communication ports in each meter position, to realize automatic calibration of electronic meters (optional)
    • The meter test systems can measure mechanical meters, electronic mechanical meters and electronic meters by the way of automatic, semi-automatic or manual operation
    • Aluminum alloy material, light and strong and corrosion resistant
    • Automatic positioning rotor mark of disc of mechanical meters, with more efficiency.
    • The swing together of the scanning heads simplifies the control
    • Starting test and creeping test
    • Measuring different constants of meters synchronously
    • With the protection function of overload, short voltage circuit and open current circuit
    • The testing software with friendly Window 10 and XP operation system, includes functional module of all kinds or modern energy meter needed, to reality error test, harmonic test, demand test, influence test etc.
    • The stored testing data can be transferred to multi-format for other program use
    • The whole system is accredited to conforms to EU health and safety standards with CE certificate

    Technical Parameters

    Application Conditions and Requirement
    EnvironmentPower RequirementSafety
    Operation
    Temperature
    HumidityAltitudeVoltage SupplyIP ClassConformity
    -10°C--+40°C35%--85%< 2500m3x220/380v±10%(or customized)
    50/60Hz±2Hz
    IP 30CE conformity
    TypeYC1891D-6YC1891D-12YC1891D-24YC1891D-48
    Number of meter positions6122448
    Accuracy0.05
    Power SourceYC8-101-250YCS-101-600YCS-101-1200YCS-101-2500
    Standard MeterSZ-01A-K3
    MSTVHJ200G-6HJ200G-12HJ200G-24HJ200G- 48
    Scanning HeadYCG-2-series
    Voltage
    Test voltage output (Phase-Neutral)24V-300V(or customized)
    Power of the voltage outputMax.100VAMax.250VAMax.500VAMax.1000VA
    ResolutionBetter than 0.01% of full scale value of range
    Setting accuracyBetter than 0.05% at the final range value
    StabilityBetter than 0.005%/h(integration time 150 s)
    Load regulation from O-max.loadBetter than 0.01%
    Distortion factorBetter than 0.3% for linear resistance load
    Harmonics2nd - 41st free programmable
    Current
    Test current output1mA-120A/200A
    Power of the current outputMax.250VA Max.500VA Max.1000VA Max.2000VA
    ResolutionBetter than 0.01% of full scale value of range
    Setting accuracyBetter than 0.05% at the final range value
    StabilityBetter than 0.005%/h(integration time 150 s)
    Load regulation from O-max.loadBetter than 0.01%
    Distortion factorBetter than 0.3% for linear resistance load
    Harmonics2nd - 41st free programmable
    Phase angle
    Phase angle0°-360°
    Resolution0.01°
    Setting accuracy0.1°
    Frequency
    Range45Hz-65Hz
    Resolution0.01Hz
    Error display
    Type of error displayRed LED
    Resolution of the error displays8 digits
