    Sz-03A-K6 Three Phase Stationary Reference Standard Meter Customized

    Ask Lasest Price
    Certification : ISO, CE
    Supply Ability : 100/Year
    Payment Terms : L/C, T/T, D/P
    Brand Name : GENY
    Model Number : SZ-03A-K6
    • Product Details
    • Company Profile

    Sz-03A-K6 Three Phase Stationary Reference Standard Meter Customized

    Customized Sz-03A-K6 Three Phase Stationary Reference Standard Meter with Components

    Product Description

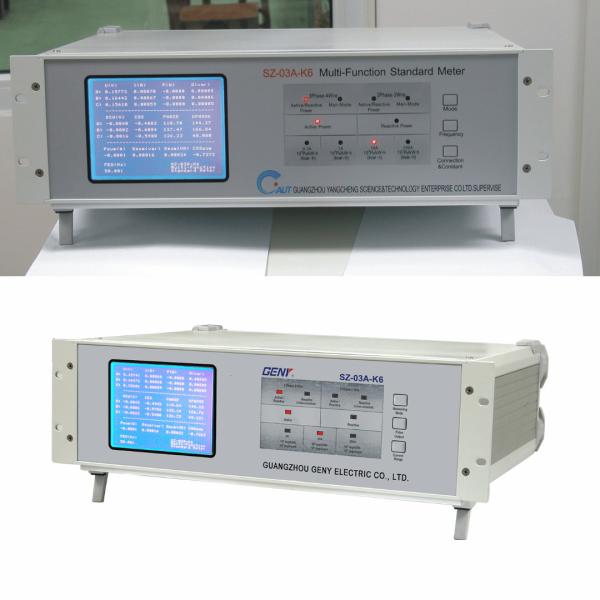

    SZ-03A-K6 Three Phase Standard Meter

    Features&Functions

    • 0.05% accuracy
    • Testing mode:active power, reactive power, cross connection reactive power
    • Testing type: 3 phase 4 wire, 3 phase 3 wire
    • Measuring voltage, current,phase,frequency,power etc of each phase
    • Measuring phase angle of phase to phase,sum of active power,sum of reactive power etc
    • High stability
    • Wide testing range
    • Large size LCD display screen
    • With communication port to PC
    • The reference standard meter is accredited to conforms to EU health and safety standards with CE certificates

    Product Parameters

    Application Conditions and Requirements
    EnvironmentPower RequirementSafety
    Operation TemperatureHumidityAltitudeVoltage SupplyIP ClassConformity
    -10°ºC--+40ºC45%--75%<2500m220V±10%,50/60Hz±2HzIP30CE conform
    TypeSZ-03A-K6
    Test voltage
    Range30V-480V
    Error±0.05%(30V-480V)
    Display range5.000000V-480.000V
    Test current
    Range10mA-120A
    Error±0.05%(50mA-120A) ±0.1%(10mA-50mA)
    Display range1.000000A-120.0000A
    Power measure error
    Active power±0.05%(50mA-120A)
    Reactive power±0.1%(50mA-120A)
    Apparent power±0.1%(50mA-120A)
    Phase angle
    Range0°-360°
    Error±0.05°
    Display range0.000001°--359.9999°
    Frequency
    Range45Hz-65Hz
    Display range45.000-65.000
    Pulse output
    High frequency output(CH)1x109(1A-10A)
    1x108(1A-10A)
    1x107(10A-120A)
    Low frequency output(CL)2x10-5xCH
    Pulse ratio1:01
    Output level5V
    Pulse input
    Input level--
    Input frequency--
    Dimensions(WxHxD)(mm)432x131x308
    Weight(kg)15

    Applications

    · Nation-level utility companies

    · Governmental bureaus of metrology

    · Big energy meter manufacturers

    Primary Competitive Advantages

    · High quality product

    · High stability

    · Friendly interface

    · Convenient operation
