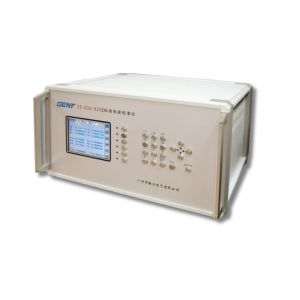

    Reference Electrical Test Meter Calibration 1ma - 120A Electrical Tester Calibration

    Ask Lasest Price
    Brand Name : GENY
    Model Number : SZ03A-K33E
    Certification : ISO, CE
    Price : negotiate rates
    Payment Terms : T/T, L/C, D/P, T/T
    Supply Ability : 5 sets / 1 months
    Delivery Time : 6~8weeks
    • Product Details
    • Company Profile

    Reference Electrical Test Meter Calibration 1ma - 120A Electrical Tester Calibration

    Wide Current Range Three Phase Reference Standard Meter with High Accuracy 0.01, Wide Measuring Current Range 1ma - 120A

    Specifications:

    Model Number

    SZ03A-K33E
    Test Voltage
    Range5V – 480V
    Error

    ±0.01% (30V – 480V)

    ±0.03% (5V – 50V)

    Display range5.000000V – 480.0000V
    Test Current
    Range1mA – 120A
    Error

    ±0.01% (0.2A – 120A)

    ±0.05% (1mA – 0.2A)

    Display range1.000000mA-120.0000A
    Power measure error
    Active power±0.01% (0.2A – 120A)
    ±0.02% (0.01A – 0.2A)
    ±0.05% (1mA – 0.01A)
    Reactive power±0.05% (0.2A – 120A)
    ±0.1% (1mA – 0.2A)
    Apparent power±0.05% (0.2A – 120A)
    ±0.1% (1mA – 0.2A)
    Energy measure error
    Active energy±0.01% (0.2A – 120A)
    ±0.02% (0.01A – 0.2A)
    ±0.05% (1mA – 0.01A)
    Reactive energy±0.05% (0.2A – 120A)
    ±0.1% (1mA – 0.2A)
    Apparent energy±0.05% (0.2A – 120A)
    ±0.1% (1mA – 0.2A)
    Phase angle
    Range0º – 360º
    Error±0.002º
    Display range0.000001º -- 359.9999º
    Frequency
    Range45Hz – 65Hz
    Display range45.0000 – 65.0000
    Pulse output
    High frequency output(CH)

    1×1012 (1mA – 2mA)

    1×1011 (2mA – 20mA)

    1×1010 (20mA – 0.2A)

    1×109 (0.2A – 2A)

    1×108 (2A – 20A)

    1×107 (20A – 120A)

    Low frequency output(CL)2×10-5×CH
    Pulse ratio1:1
    Output level5V
    Pulse input
    Input level5V
    Input frequencyMax. 1MHz
    Other
    Voltage Supply220V ± 10%, 50/60Hz ± 2Hz
    Ambient temperature10°C -- 30°C
    Influence of external fields≤ 0.05 % / mT
    Relative humidity45% -- 75%
    Dimensions (W×H×D) (mm)445×260×480
    Weight (kg)25

    Description:

    Introducing the High Accuracy Three Phase Reference Standard Meter, meticulously designed to meet the stringent requirements of Three Phase Energy Meter Test Bench Systems.

    Key Features:

    • Unrivaled Precision: Achieving an exceptional level of accuracy, with measurements up to 0.01%, ensuring reliable and precise calibration results.
    • Versatile Testing Capability: Supports a variety of test types including three-phase four-wire and three-phase three-wire configurations, accommodating diverse testing needs with ease.
    • Extensive Testing Range: Offering a wide range of testing capabilities, from voltage measurements ranging from 5V to 480V, and current measurements from 1mA to 120A, ensuring comprehensive testing coverage across various scenarios.
    • Comprehensive Test Modes: Facilitates testing in multiple modes including active power, reactive power, and cross-connected reactive power, ensuring thorough assessment of meter performance under different load conditions.
    • Waveform Display Functionality: Provides real-time waveform display, offering valuable insights into the characteristics of electrical signals being measured.
    • Harmonic Analysis: Equipped with harmonic analysis functionality, enabling detailed examination of harmonic distortion and its impact on power quality.
    • Energy Accumulation: Features energy accumulating function, allowing for precise measurement and accumulation of energy consumption over time.
    • Vector Diagram: Incorporates a vector diagram function, enabling visualization of phase relationships and power factor, aiding in diagnosing and correcting power system issues.
    • Seamless Data Management: Effortlessly manage test data through computer connectivity via the RS232 interface, facilitating efficient analysis, documentation, and compliance with industry standards.
    • Experience unparalleled performance and versatility with the High Accuracy Three Phase Reference Standard Meter, designed to elevate the precision and reliability of energy meter testing processes.

    Applications:

    · Nation-level utility companies

    · Governmental bureaus of metrology

    · Big energy meter manufacturers

    Primary Competitive Advantages:

    · High quality product

    · High Accuracy up to 0.01%

    · High stability

    · Friendly interface

    · Convenient operation
