    High precision 0.05% Portable Three Phase Standard Meter

    Ask Lasest Price
    Brand Name : GENY
    Model Number : YC89S1
    Certification : ISO, CE
    Price : Negotiation
    Payment Terms : L/C,T/T
    Supply Ability : 30 PCS per month
    Delivery Time : 15 days after order confirmed
    • Product Details
    • Company Profile

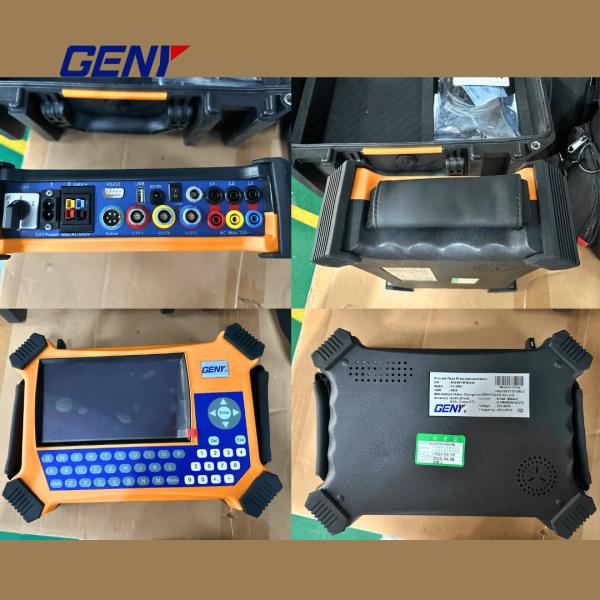

    High precision 0.05% Portable Three Phase Standard Meter

    High precision 0.05% Portable Three Phase Standard Meter



    High-precision 0.05% three-phase energy meter tester with large color TFT, waveform/vector diagram, dual-pulse synchronous calibration & RS232 PC link.


    Key Features



    • 0.05 % accuracy for national metrology standards
    • 7-inch color display with waveform & vector diagram views
    • One-touch screen copy & data export via RS232/USB
    • Dual-pulse input for simultaneous master/slave meter calibration
    • Built-in energy accumulation and trend logging
    • Lightweight field-ready design for utilities & meter factories



    Specifications



    Range

    30-480V

    Error

    ±0.05%

    Harmonic

    2nd -- 21st

    Range (direct connection)

    0.1-10A

    Range (clamp CT)

    100A

    5A,500A,1000A,2000A (option)

    Error (direct connection)

    ±0.05%

    Error (clamp CT)

    ±0.2% (5A, 100A ); ±0.5% (other)

    Harmonic

    2nd -- 21st

    Active power (direct connection)

    ±0.05%

    Active power (clamp CT)

    ±0.2% (5A, 100A); ±0.5% (other)

    Reactive power (direct connection)

    ±0.1%

    Reactive power (clamp CT)

    ±0.2% (5A, 100A); ±0.5% (other)

    Active energy (direct connection)

    ±0.05%

    Active energy (clamp CT)

    ±0.2% (5A, 100A); ±0.5% (other)

    Reactive energy (direct connection)

    ±0.1%

    Reactive energy (clamp CT)

    ±0.2% (5A, 100A); ±0.5% (other)

    Range

    0º – 360º

    Error

    ±0.05º

    Range

    45Hz – 65Hz

    High frequency output(CH)

    --

    Low frequency output(CL)

    3600imp/kWh

    Pulse ratio

    1:1

    Output level

    5V

    Input channel

    2

    Input level

    5 -- 10V

    Input frequency

    Max. 100Hz

    Resolution

    7” TFT color (480×234)

    Vector diagram

    Yes

    Waveform

    Yes

    Energy accumulation

    Yes

    CT ratio test

    Yes

    Local parameter input

    Yes

    Wiring emulation

    Yes

    Self-calibration

    Yes

    Recorder check

    Yes

    Data storage

    Yes

    Data storage qty

    5000

    External extend memory

    Yes

    Screen printing

    Yes

    Communication port

    USB/RS232

    Communication with PC

    Yes

    Upload data

    Yes

    External mini printer

    Yes

    External keyboard

    Yes

    Voltage Supply way

    External power; test lead power

    Voltage Supply

    55-480V, 50/60Hz

    Ambient temperature

    -25°C -- +45°C

    Relative humidity

    40% -- 95%

    Dimensions (W×H×D) (mm)

    245×168×67

    Weight (kg)

    1.5kg
