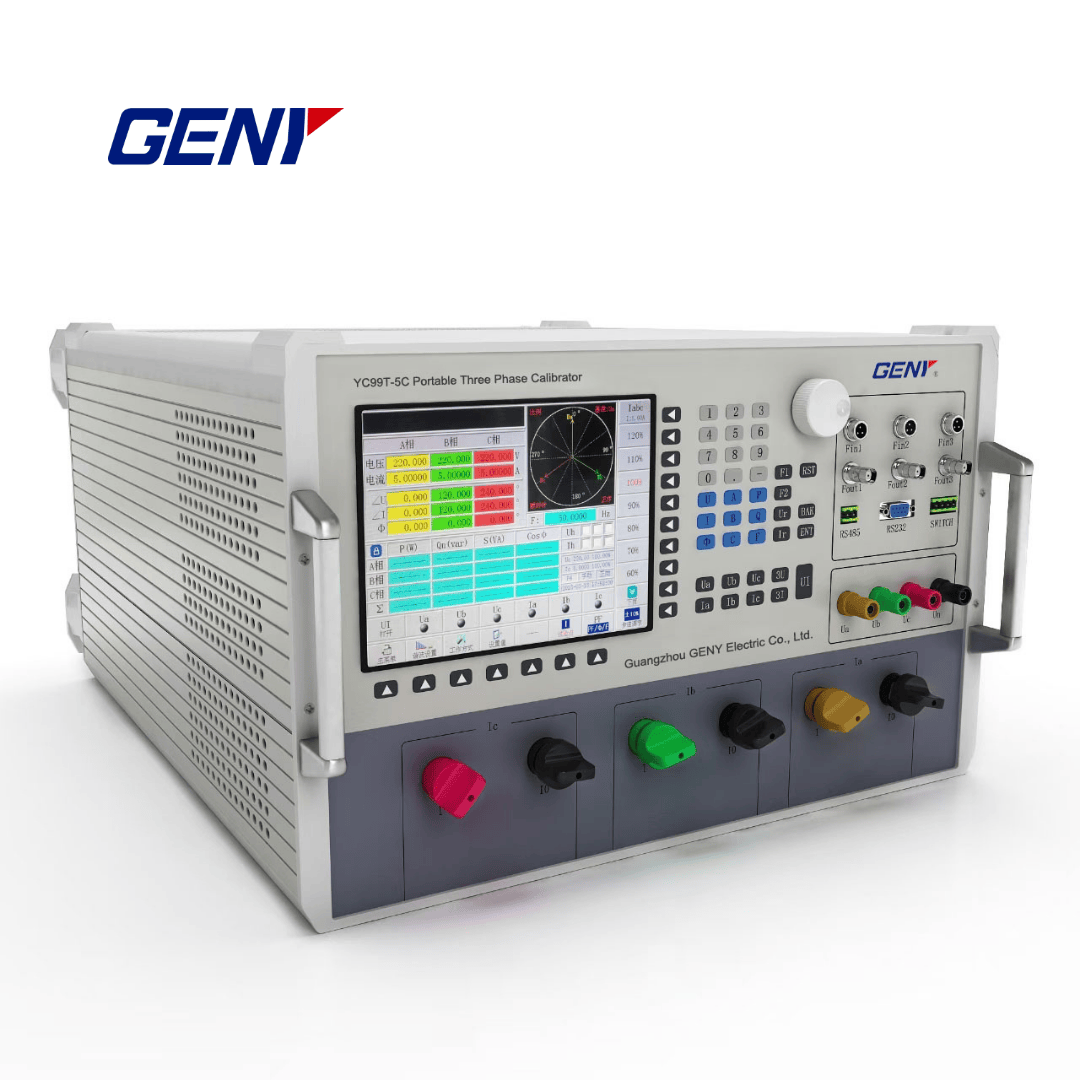

YC99T-5C Pro Portable Meter Test Equipment

Features & Functions

• Three-phase fully automatic or manual-control energy-meter test system with reference standard and integrated current and voltage source.
• It can calibrates basic error, creeping, starting, and standard deviation automatically or single-step manually; automatic calibration sequences can be user’s request.
• Verifies and calibrates max 3 units single-phase meters,or three-phase meters complying with MS IEC 62052-11, MS IEC 62053-21, 62053-22, 62053-23, 62053-31, MS IEC 62063-61, and BS 568.
• Current source outputs up to 3 × 120 A continuously for a minimum of 8 hours.
• Current and voltage sources selectable independently; current, voltage, and phase shift adjustable with high accuracy on a per-phase basis.
• Optional capability to test 3 three-phase close-link meters.
• Generates 2nd–63rd harmonics; functions as a harmonic source.
• Automatic operation via predefined load points using onboard keyboard, mouse, or external laptop.
• Displays voltage, current, phase angle, vector diagram, waveform, harmonics, etc.
• Current output can be customized.
• 32 GB internal memory for customer data and measurement results.
• Saved test results uploadable to external laptop via Ethernet.
• Compact, robust design with long-term stability.

Specifications
