Isolated Current Transformer for High Accuracy Current Testing of Close IP-Link Meter

A. Isolation Current Transformer (ICT)

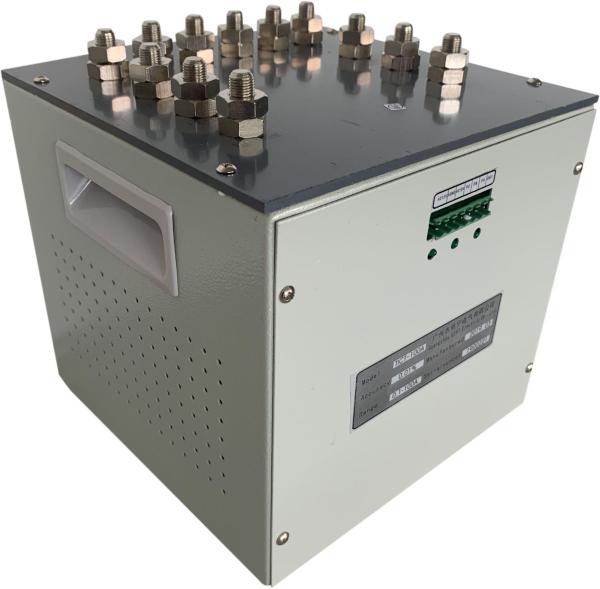

Nowadays, more and more energy meter’s current and voltage channel is fixed connection; it is close IP-link meter. For testing of meters with closed IP-link, the unit under test must be supplied with isolated and potential-free current and voltage signals. The previous test bench couldn’t offer such signals, can only test open IP-link meter. TICT-100 series is a precision isolated current transformer (ICT) with active electronic error compensation, can offer the insolated high accuracy current, to test close IP-link meter. TICT-100 series can be installed on the new test bench or used to upgrading the old test bench.

Description:

Electric energy meter with closed I-P links are used wider and wider. If the under test meter not allowed to open the closed I-P links, It is need ICT to isolate the current circuit to get a 1:1 current ratio to fulfill the calibration.

Each ICT is fitted in each meter position.

Technical specification:

Technical data of ICT

Current range 3× (10mA – 120A)

Accuracy 0.01 (10mA – 120A)

Ratio 1:1 (primary current = secondary current)

Frequency range 45Hz – 65Hz

Output burden voltage 3×0.6V (max)

Output power 3×60VA (max)

Communication port RS-485

Power supply +/- 12VDC

Power consumption 20 VA (max)

Operation temperature - 10°C … +50°C

Storage temperature - 20°C … +60°C

Dimensions (H×W×D) 290mm×275mm×296mm

Weight approx.17kg
