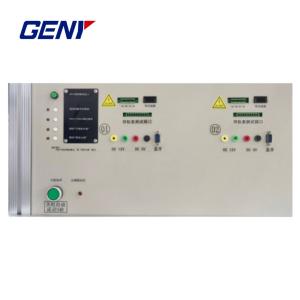

YC-1893GT Rail-Mount Stationary Energy Meter Verification System

Device Features

• Flexible System Characteristics
• RJ-45 / RS-485 / CAN Interface
• Carrier / Remote Signal / State Grid Bluetooth Communication Interface
• Microcomputer Automatic Calibration Operation and Keyboard Manual Calibration Operation
• Flexible Calibration Plan Settings
• Various Report Formats that Can Be Modified According to User Requirements
• Communication Protocol for Smart Metering
• Barcode Input and Networking Functions
• Supports 645, 698 Communication Protocols

Technical Specifications

Device Accuracy Level: 0.05 Level / 0.1 Level

Output Voltage

• Range: 3x57.7V / 3x100V / 3x220V / 3x380V
• Adjustment Range: 0~120% Un
• Adjustment Precision: Minimum 1mV
• Waveform Distortion: ≤0.3%
• Phase Shift Impact: <0.1%
• Load Regulation: ≤±0.3% of Full Scale Value (Pure Resistive, Inductive, Capacitive)
• Monitoring Accuracy: Multi-functional Standard Meter Monitoring

Output Current

• Range: 3x0.02A~100A Automatic Range Selection (Power Source Part, Default Imax=50A)
• 3x0.2A~500A (Through 1:10 ICT Transformation Output. ICT Accuracy Level: 0.01.)
• CT Transformation Output, Starting Current: 200mA (Minimum), Starting Current Accuracy ≤3%
• Simulated Rogowski Coil Output Voltage: 0.16mV-400mV (Corresponding to Rail Meter 0.2A~500A Input)
• Adjustment Range: 0~120% In
• Adjustment Precision: Minimum 0.1mA (Power Source Part)
• Waveform Distortion: ≤0.3%
• Phase Shift Impact: <0.1%
• Load Regulation: ≤±0.3% of Full Scale Value (Pure Resistive, Inductive, Capacitive)
• Monitoring Accuracy: Multi-functional Standard Meter Monitoring

Output Phase

• Adjustment Range: 0.01°~360°
• Adjustment Precision: Minimum 0.01°
• Load Regulation: <±0.3°
• Monitoring Accuracy: Multi-functional Standard Meter Monitoring

Output Frequency

• Adjustment Range: 45.000Hz~65.000Hz
• Adjustment Precision: Minimum 0.001Hz
• Load Regulation: <±0.1%
• Monitoring Accuracy: Multi-functional Standard Meter Monitoring

Output Power Symmetry

• When the device indicates (or defaults to) symmetry, the actual output symmetry should not exceed the specifications in Table 3-3.

Output Power Stability

• After the device reaches a thermally stable state, within the specified output load range, the output power stability Py should not exceed the specifications in Table 3-4.

(Table 3-3)

(Table 3-4)

Timing Signal

• Modular Timing Frequency Meter, Output Timing Frequency 625kHz
• Internal Crystal Oscillator Frequency Accuracy ≤0.4x10^-6, Annual Stability ≤0.1x10^-6
• (The above are default configurations, for other performance parameters and functions, please contact our company for customization)

Certification

Guangzhou GENY Electric Co. Ltd. is a leading manufacturer of energy meter test systems, whose predecessor is Guangzhou Yangcheng Science & Technology Enterprises Co., Ltd. which was established in 1987. We have been dedicated to the energy meter testing industry for over 30 years, and continuously invest in R&D to improve our technology and the quality of our products. It enables GENY to provide top quality products and prompt after-sales service to customers at home and abroad.

GENY's product lines include stationary energy meter test system and portable meter test equipment, which fully comply with the national and international standards of GB, IEC, CE, ISO, etc. Thanks to excellent parameters and high functionality, more than eight thousand sets of test benches and more than one million sets of portable standards have so far found applications in China and overseas markets, and received excellent evaluation and reputation.

We are a privately owned high-tech company with an import and export license. Over the past ten years, we have made great efforts to develop overseas markets and have achieved excellent results. Our products have been shipped to more than 40 countries and regions, serving not only industrial customers, power companies, but also national laboratories.

Providing local technical support and after-sales service to global customers is our priority, and GENY focuses on supplying the right quality products and being a reliable partner in the past and in the future. We welcome our esteemed customers worldwide to cooperate with us.

Our customers

Our customers are located nationwide and worldwide:

1.More than electricity science research institutes over provincial level including China including National Electricity Science Research Institutes, North China Electricity Science Research Institutes, and East China Electricity Science Research Institutes (National Metrology Metrology Institute/Laboratory);

2.More than 210 power supply bureaus above the county level, including Shanghai Electricity Bureau, Beijing Electricity Bureau, Chongqing Electricity Supply Bureau;

3.More than 200 electric energy meter manufacturers including Hangzhou Holley Co., Ltd. and Ningbo Sanxing Co., Ltd.

4.In the international market, many large-scale energy meter manufacturers and power choose our products to replace ZREA or MTE products, such as Itron, Landis+gyr, EDMI, Secure Meters, BENTEC India Limited, Crystal Power Sinhal Udyog, ZEN Meters, Gram Power, LAN Engineering, Modern Transformers, Email Metering, AMPY UK, ITI LIMITED, Smart Meters (ADANI), United Electrical Ltd, SANDS Chennai, ALPHION, Ceylon Electricity Board, BSES NABL LAB etc. & various other national & international power companies, labs & meter manufacturers.

Our company is dedicated to providing customers with quality products and services. The goal is to make customers' dreams come true. At the same time, we believe in bring you the great economic benefit and development. Please either take a look at our website for more detailed information, or contact us directly. We look forward to the opportunity to work with your company for mutual success.

Our resources and advantages

1.We have been engaged in the field of electric energy meter measurement for 30 years as the technological leader and creator of new technology in the field of electric energy meter calibrator. We have an excellent R&D team that has been devoted to the technical development of electric energy meter test instruments for a long time,we can satisfy the various different requirements of all kinds of customers.

2. All of our employees have received specialized training and acquired good professional quality and skills. The company adopts ISO9001 management system, and we passed ISO9001-2000 certification in 2002, and all employees have received TQM training. GENY has now realized ISO9001 control of R&D production, marketing & sales and service to fully guarantee product quality.

3.We have a complete marketing network and offer a competitive price.

Our well-trained service team is able to provide maintenance, training, schematic design and software update services to each customer for the first time. Thus, GENY will be your reliable partner and we welcome our honorable customers worldwide to cooperate with us.
