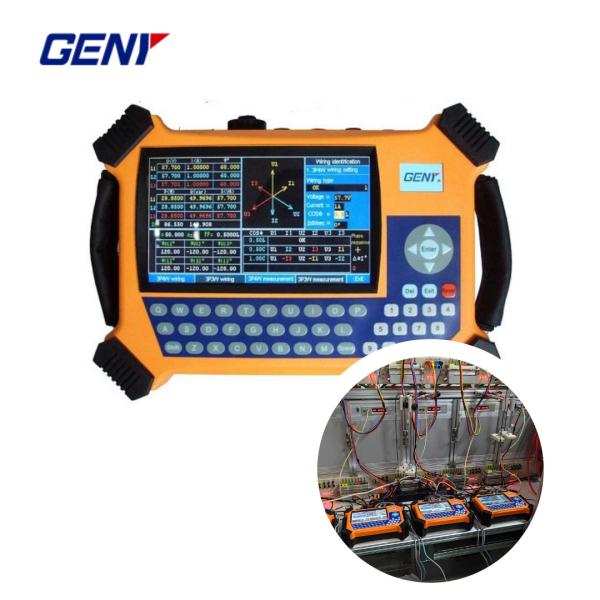

    YC98S1 Standard Portable Testing Device Professional ODM Manufacturer

    Ask Lasest Price
    Brand Name : GENY
    Model Number : YC98S1
    Certification : ISO, CE
    Payment Terms : L/C, T/T, D/P
    Supply Ability : 300/Year
    • Product Details
    • Company Profile

    YC98S1 Standard Portable Testing Device Professional ODM Manufacturer

    YC98S1 Standard Portable Testing Device Professional ODM Manufacturer


    Product Description

    • Exceptional Measurement Precision

    Our equipment delivers outstanding accuracy of 0.05%, ensuring that your measurements are as precise as possible.

    • Vibrant Large-Screen Display

    Enjoy a spacious and vivid color display that offers a clear, intuitive visual experience, simplifying the interpretation of data.

    • Innovative Screen Copy Feature

    The innovative screen copy feature simplifies the duplication of screen content, making record-keeping and information sharing a breeze.

    • Dynamic Waveform Visualization

    The waveform display function provides a dynamic view of electrical signals, facilitating a detailed analysis of their characteristics.

    • Advanced Vector Diagram Analysis

    The vector diagram function offers a comprehensive visual analysis of electrical parameters, deepening your understanding of their interdependencies.

    • Efficient Energy Accumulation

    The energy accumulating feature allows for efficient data collection and processing, perfect for long-duration testing needs.

    • Synchronized Calibration with Dual Pulse Inputs

    The capability to input two pulse signals simultaneously ensures master and slave meters are synchronized for calibration, delivering unmatched accuracy in comparative measurements.

    • Seamless Data Management via RS232 Interface

    Effortlessly manage measurement data with a computer through the RS232 interface, streamlining data storage and analysis.


    Product Parameters

    Application Conditlons and Requirements
    EnvironmentSafety
    Operation TemperatureRelative HumidityAltitudeIP ClassConformity
    -25°C-+45°C40%--95%<2500mIP30CE conform
    TypeYC-98S1
    Test voltage
    Range30V-480V
    Error±0.05%
    Harmonic2nd-51st
    Test current
    Range(direct connection)0.05-10A
    Range(clamp CT)100A
    5A,500A,1000A,2000A
    (option)
    Error(direct connection)±0.05%
    Error(clamp CT)±0.2%(5A,100A)
    ±0.5%(other)
    Harmonic2nd-51st
    Power measure error
    Active power(direct connection)±0.05%
    Active power(clamp CT)±0.2%(5A,100A) ±0.5%(other)
    Reactive power(direct)±0.1%
    Reactive power(clamp CT)±0.2%(5A,100A)
    ±0.5%(other)
    Energy measure error
    Active energy(direct)±0.05%
    Active energy(clamp CT)±0.2%(5A,100A)
    ±0.5%(other)
    Reactive energy(direct)±0.1%
    Reactive energy(clamp CT)±0.2%(5A,100A)
    ±0.5%(other)
    Phase angle
    Range0°-360°
    Error±0.05°
    Frequency
    Range45Hz-65Hz
    Pulse output
    High frequency output(CH)--
    Low frequency3600imp/kWh
    Pulse ratioPulse ratio1:01
    Output level5V
    Pulse input
    Input channel2
    Input level5-10V
    Input frequencyMax.100Hz
    Display
    Resolution7"TFT color
    Function
    Vector diagram
    Waveform
    Energy accumulation
    CT ratio test
    Local parameter input
    Wiring emulation
    Self-calibration
    Recorder check
    Data storage
    Data storage qty5000
    External extend
    Screen printing
    Communication portUSB/RS232
    Communication with
    Upload data
    External mini printer
    External keyboard
    Other
    Voltage Supply wayExternal power
    test lead power
    Voltage Supply55-480V,50/60Hz
    Dimensions(WxHxD)245x168x67
    Weight(kg)1.5kg
