    Class 0.05 Accuracy Portable Meter Test System 3-Phase Calibrator with High Voltage & Harmonic Output

    Class 0.05 Accuracy Portable 3-Phase Calibrator with High Voltage & Harmonic Output

    Description:

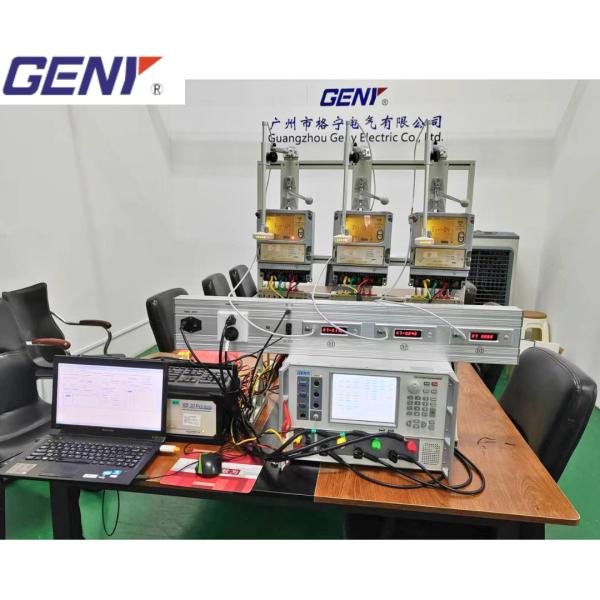

    The YC99T series is a portable meter testing calibrator. It can be used in the lab or out in the field. It uses the latest technology to calibrate energy meters. The YC99T5C model has the same software features as the YC99T-3C, but it can deliver different voltages and currents.
    The YC99T-3C supports IEC standard communication protocol, enabling multifunctional tests such as indicating demand, indicating demand period error, and time switching error. It features a constant temperature crystal oscillator for verifying daily time error in electric energy meters.The YC99T-3C is user-friendly, with an intuitive panel screen and wiring layout. It not only performs standard meter testing but also functions as a harmonic power output device, providing stable harmonic output.
    The YC99T series can detect daily time errors in energy meters.It is highly accurate, with ±0.05% for voltage, current, and active power, and ±0.1% for reactive power.It is stable at 0.01%RG/3min, and the distortion percentage for alternating voltage and current is ≤0.2%. The YC99T-3C can measure voltage up to 660V and current up to 50A. It can also measure harmonics between 2 and 63.You can manage test data via an RS232 interface. You can operate the device directly or control it with a PC. It can automate energy meter calibration and allow access to MUTs through RS485, RS232, and Ethernet. It also includes functions for checking that it is working and for communicating with the internal modules

    Specifications:


    Voltage
    AC Voltage Range57.7V-660V
    Power of the voltage outputMAX.20VA
    Resolution0.01%
    Accuracy0.1%
    Stability0.01%/120s
    Distortion factor0.2%
    Current
    Test current output1A-50A
    Power of the current outputMax. 50VA
    Resolution0.01%
    Accuracy0.05%
    Stability0.01%/180s
    Distortion factor< 0.3% for linear resistance load
    Phase angle
    Range0 -- 360°
    Resolution0.1°
    Accuracy0.2°
    Frequency
    Range40Hz – 70Hz
    Resolution0.005Hz
    Pulse output
    Harmonic Output2-63
    Pulse input
    Input channel3
    Input frequencyMax. 20Hz
    Other
    Voltage Supply220V±15% /110V±15% (optional)
    Ambient temperature20°C -- 30°C
    Relative humidity≤85%
    Dimensions (W×H×D) (mm)500 X 440 X 180
    Weight (kg)

    Class 0.05 Accuracy Portable Meter Test System 3-Phase Calibrator with High Voltage & Harmonic Output

    Class 0.05 Accuracy Portable Meter Test System 3-Phase Calibrator with High Voltage & Harmonic OutputClass 0.05 Accuracy Portable Meter Test System 3-Phase Calibrator with High Voltage & Harmonic Output


    *To learn more go to our website http://www.genymetertestequipment.com/
