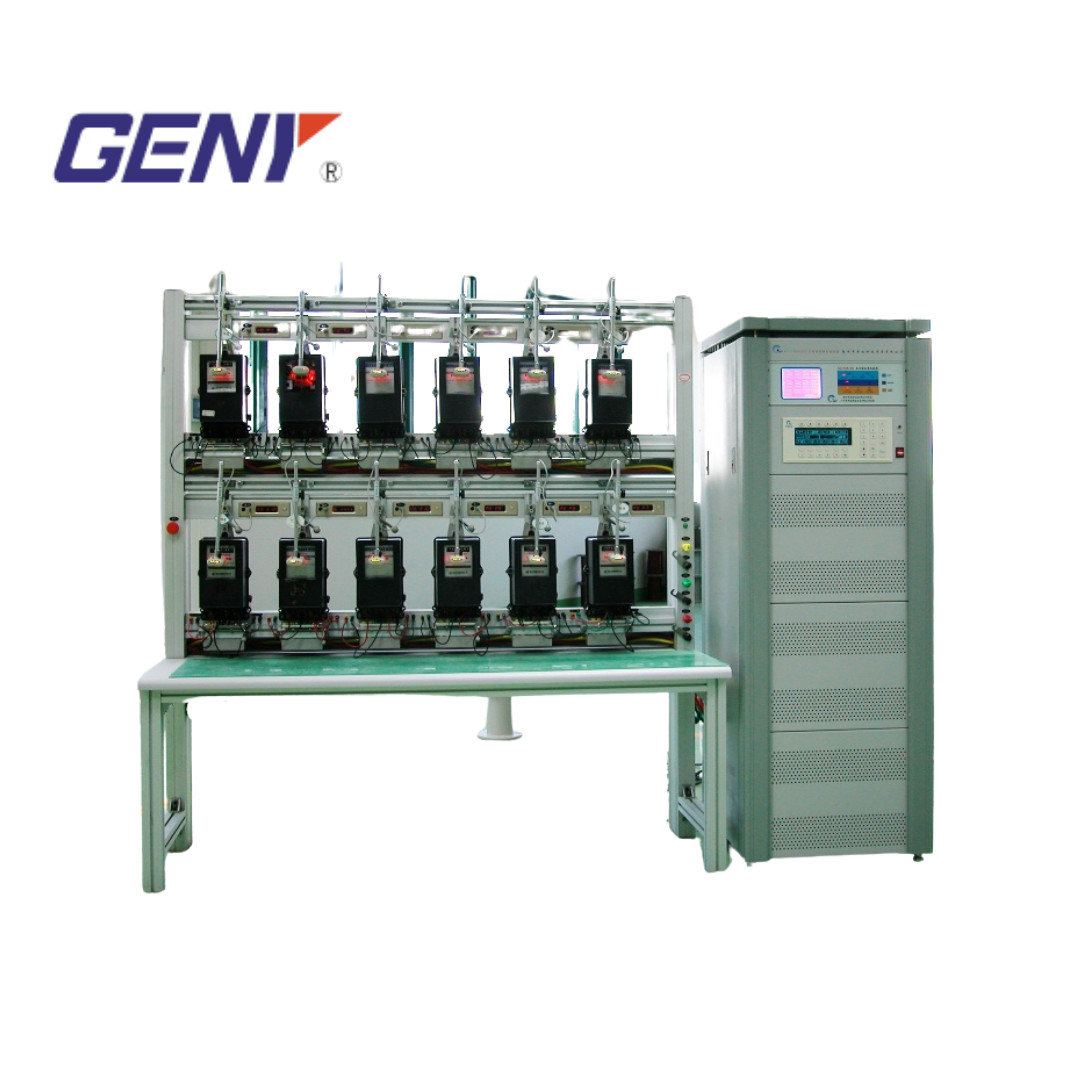

    Three Phase Electric Energy Meter Test System

    Ask Lasest Price
    Brand Name : GENY
    Model Number : YC1893D-12
    Certification : ISO, CE
    Price : negotiate rates
    Payment Terms : T/T, L/C, D/P, T/T
    Supply Ability : 5 sets / 1 months
    Delivery Time : 6~8weeks
    • Product Details
    • Company Profile

    Three Phase Electric Energy Meter Test System

    Three Phase Electric Energy Meter Test System

    Description:


    1. The meter test system can measure mechanical meter, electronic mechanical meters and electronic meter by ways of automatic, semi-automatic or manual operation.

    2. Meters under testing: 3P4W, 3P3W, 1P2W

    3. Testing mode: active power, reactive power, cross connected reactive power

    4. Simultaneously measure meters with same specifications but different meter constants

    5. Automatic positioning rotor mark of disc of mechanical meter, with more efficiency.

    6. Starting test and creeping test

    7. Neutral current test (optional)

    8. Installing the ICT in each meter position to test three-phase meters with closed links between the current and voltage measuring circuits(I-P links)(optional)

    9. With the protection function of overload, short voltage circuit and open current circuit.

    10. The swing together of the scanning heads simplifies the control.

    11. Aluminum alloy material, light and strong and corrosion resistant

    12.The testing software with friendly Windows 2000 /XP /7 /8 /10 operation system, includes functional module of all kinds of modern energy meter needed, to reality error test, harmonic test, demand test, influence test etc,.

    Specifications:


    Technical spec.YC1893D-6YC1893D-12YC1893D-24YC1893D-48
    Number of meter positions6122448
    Accuracy0.05 / 0.02
    Power SourceYCS-103-250YCS-103-600YCS-103-1200YCS-103-2500
    Standard MeterSZ03A-K6 / SZ03A-K8
    Scanning HeadYCG-S Series
    Voltage
    Test voltage output(Phase-Neutral)3x(24V~288V)(or customized)
    Power of the voltage outputMax. 3x100VAMax. 3x250VAMax. 3x500VAMax. 3x1000VA
    ResolutionBetter than 0.01% of full scale value of range
    Setting accuracyBetter than 0.05% at the final range value
    StabilityBetter than 0.005% /h (integration time 150s)
    Load regulation from 0~max. loadBetter than 0.01%
    Distortion factorBetter than 0.3% for linear resistance load
    Harmonic2nd~21st free programmable
    Current
    Test current output3x(1mA~100A)
    Power of the current outputMax. 3x150VAMax. 3x350VAMax. 3x750VAMax. 3x1500VA
    ResolutionBetter than 0.01% of full scale value of range
    Setting accuracyBetter than 0.05% at the final range value
    StabilityBetter than 0.005% /h (integration time 150s)
    Load regulation from 0~max. loadBetter than 0.01%
    Distortion factorBetter than 0.3% for linear resistance load
    Harmonic2nd~21st free programmable
    Phase angle
    Range0~360⁰
    Resolution0.01⁰
    Setting accuracy0.1⁰
    Frequency
    Range45Hz~65Hz
    Resolution0.01Hz
    Error display
    Type of error displayRed LED
    Resolution of error displays8 digitals
    Other
    Voltage supply

    3x220/380V±10%(or customized)

    50/60Hz ±2Hz

    Ambient temperature-10°C~+40°C
    Relative humidity35%~85%

    Three Phase Electric Energy Meter Test System

    Three Phase Electric Energy Meter Test SystemThree Phase Electric Energy Meter Test System


    *To learn more go to our website http://www.genymetertestequipment.com/
